UPS¶
| Networking | |
| Hostname | ups |
| IP | 10.0.0.8 |
| Virtual Machine | ups |
| Software | |
| Version | Agent 3.2.3 |
| Last Updated | May 2017 |
| Hardware | |
| CPU | 1 |
| Memory | 1GB |
| Network | Admin |
| Storage | 16GB (SSD) |
| USB Device | Cyber Power System |
CyberPower PFC Sinewave Series 1300Va 780W UPS.
Must use the Virtual Appliance (PowerPanel Business Edition Agent) as it has the ability to shutdown ESXi. The Linux and Windows version does not.
Warranty¶
Comes with 2 years advance replacement including international batteries
Warranty is from 17/06/2014 to 17/06/2016
PowerPanel Business Edition Agent¶
The software which allows remote management of the UPS
- Alerts via email
- Shutdown, startup and reboot of UPS
- Shutdown of ESXi when power loss detected
Download Virtual Appliance from here: https://www.cyberpowersystems.com/product/software/powerpanel-business-edition-for-virtual-machines/
Login is admin:admin
Commands¶
sudo service ppbed stop
sudo service ppbed start

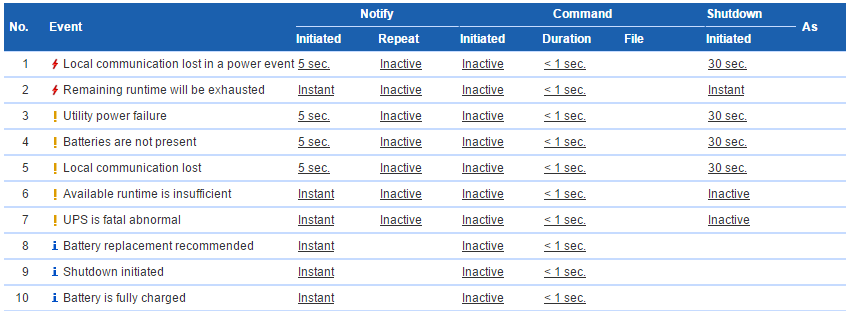

Shutdown Settings¶
