pfSense

Networking
Hostname pfsense
IP 10.0.100.0 / 10.0.X.1
Virtual Machine pfsense
Website https://10.0.0.1/
Software
Version 2.4.2-RELEASE-p1
Last Updated Feb 10 2018
Hardware
CPU 1
Memory 512MB
Network All
Storage 8GB (mirror ZFS0/1)

pfSense is an open source firewall/router computer software distribution based on FreeBSD. It is installed on a computer to make a dedicated firewall/router for a network and is noted for its reliability and offering features often only found in expensive commercial firewalls. It can be configured and upgraded through a web-based interface, and requires no knowledge of the underlying FreeBSD system to manage. pfSense is commonly deployed as a perimeter firewall, router, wireless access point, DHCP server, DNS server, and as a VPN endpoint.

Packages

  • Avahi
  • mailreport
  • Open-VM-Tools
  • openvpn-client-export
  • snort

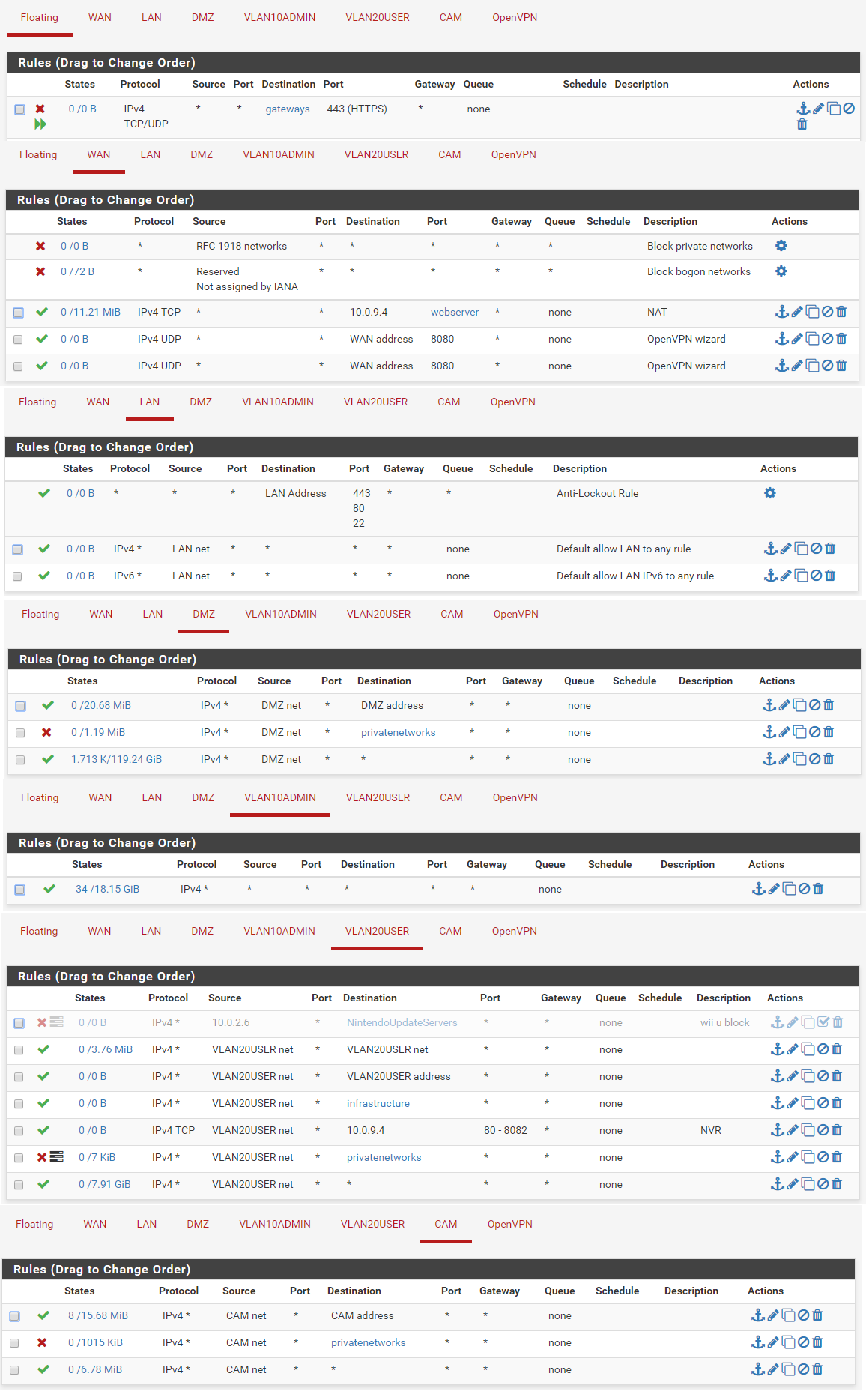

Firewall Rules

../../_images/firewall.png

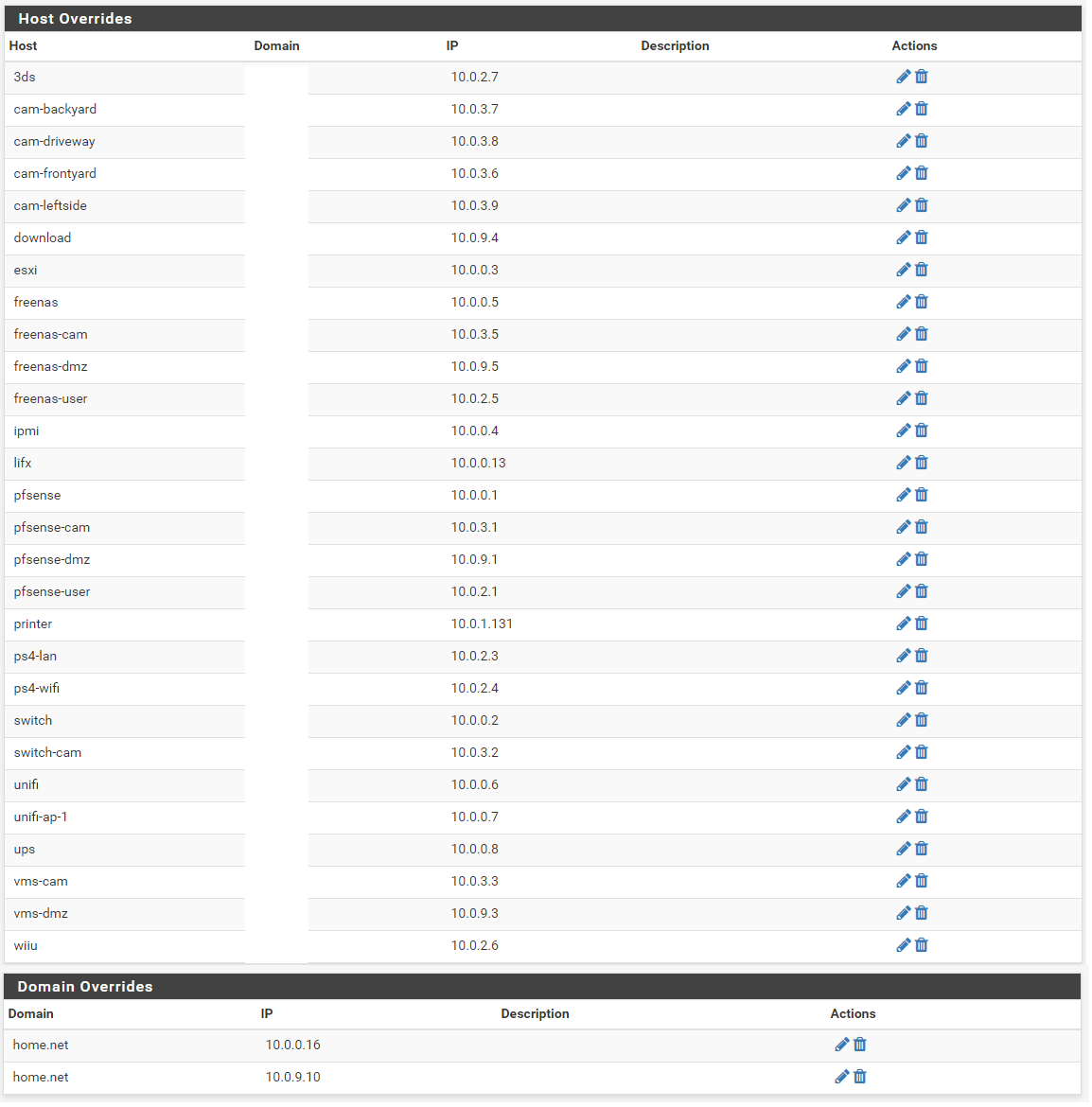

DNS Entries

../../_images/dns.png

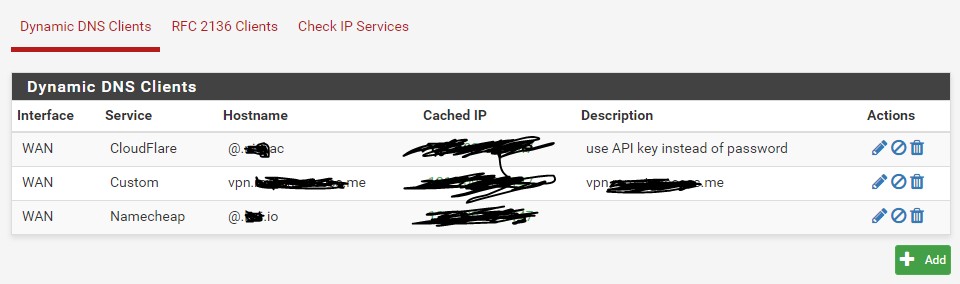

Dynamic DNS

../../_images/dynamicdns.png

Snort Suppress

#(http_inspect) NO CONTENT-LENGTH OR TRANSFER-ENCODING IN HTTP RESPONSE
suppress gen_id 120, sig_id 3

#(http_inspect) BARE BYTE UNICODE ENCODING
suppress gen_id 119, sig_id 4

#(spp_ssl) Invalid Client HELLO after Server HELLO Detected
suppress gen_id 137, sig_id 1

#(http_inspect) INVALID CONTENT-LENGTH OR CHUNK SIZE
suppress gen_id 120, sig_id 8

#(http_inspect) DOUBLE DECODING ATTACK
suppress gen_id 119, sig_id 2

#(http_inspect) UNESCAPED SPACE IN HTTP URI
suppress gen_id 119, sig_id 33

#(ftp_telnet) FTP command parameters were too long
suppress gen_id 125, sig_id 3

#(http_inspect) JAVASCRIPT OBFUSCATION LEVELS EXCEEDS 1
suppress gen_id 120, sig_id 9

#(http_inspect) UNKNOWN METHOD
suppress gen_id 119, sig_id 31

#(http_inspect) IIS UNICODE CODEPOINT ENCODING
suppress gen_id 119, sig_id 7

#(ftp_telnet) Invalid FTP Command
suppress gen_id 125, sig_id 2

#(http_inspect) JAVASCRIPT WHITESPACES EXCEEDS MAX ALLOWED
suppress gen_id 120, sig_id 10
#(spp_sip) URI is too long
suppress gen_id 140, sig_id 3

#(http_inspect) SIMPLE REQUEST
suppress gen_id 119, sig_id 32``
