ESXi

Networking
Hostname esxi
IP 10.0.0.3
Website https://10.0.0.3
Software
Version 6.5.0 U1 b5969303
Last Updated Aug 3 2017
Hardware
CPU E3-1230v3
Memory 32GB DDR3

Currently installed on a 16GB Cruzer Blade (mpx.vmhba32:C0:T0:L0)

Update ESXi

Go here and click on the latest Imageprofile

Licenses

ESXi 6.0 FREE License from VMware, works with 6.5

(Decrypt with OpenSSL)

U2FsdGVkX1/7Sozs6M4f650PqfEPMSXY4ts26Cir8D4lA3rPMm9LiQXNetw9yqNX

vSwitchs

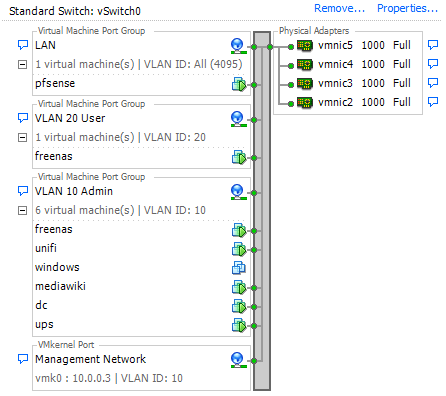

vSwitch 0

../../_images/vswitch0.png
  • All port groups are set to Route Based on IP Hash

vSwitch 1

../../_images/vswitch1.png

vSwitch 2

../../_images/vswitch2.png

vSwitch 3

../../_images/vswitch3.png

Storage

  • HDD (10.0.0.5:/mnt/hdd)
  • SSD (10.0.0.5:/mnt/ssd)
  • RECORDING
  • ZFS0 - dc, pfsense and freenas main drive
  • ZFS1 - dc, pfsense and freenas mirrored

VM Startup and Shutdown

  1. dc
  2. pfsense
  3. freenas (180 seconds)
  4. ups
  5. vms
  6. the rest
